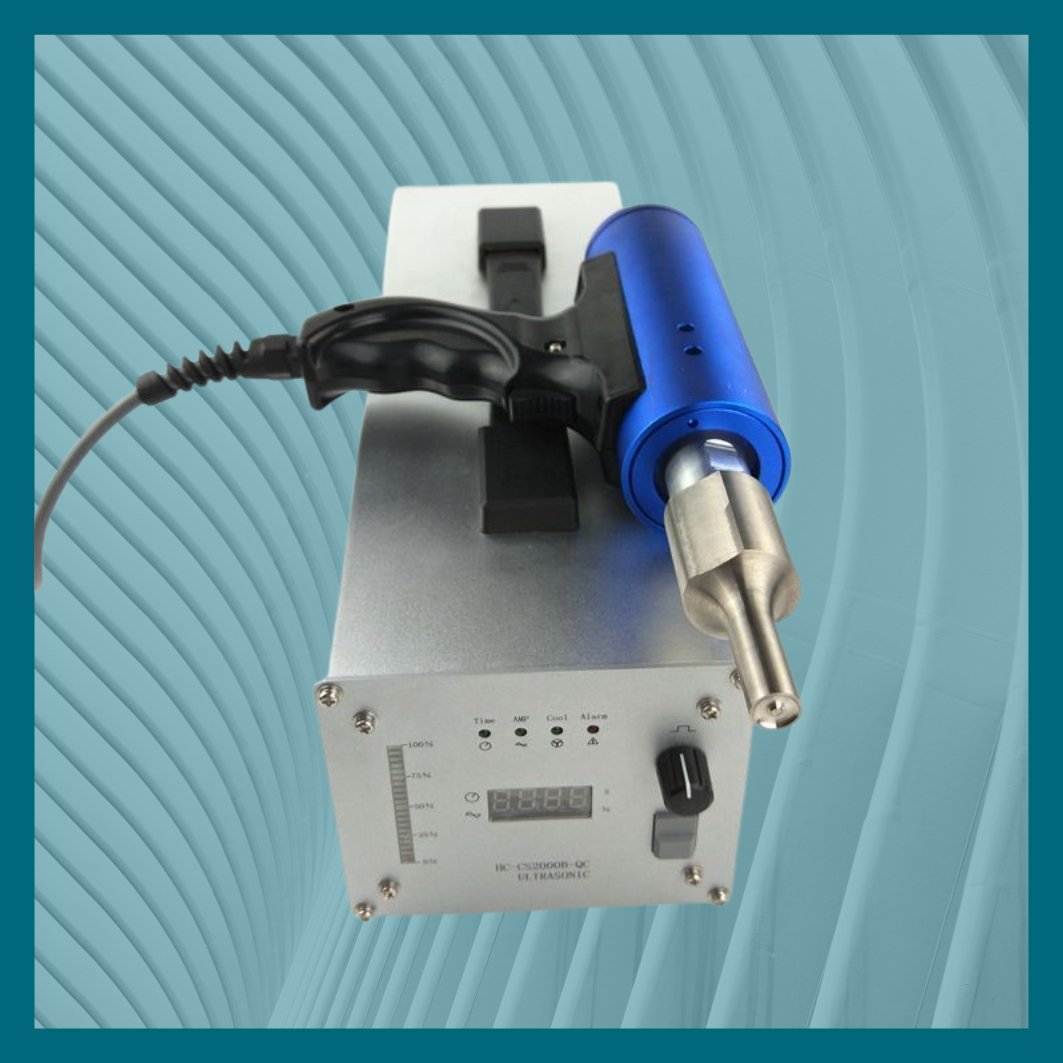

20 KHz Ultrasonic Hand Gun

Ultrasonic Hand Gun is engineered to meet modern manufacturing, maintenance, and repair requirements where precision and reliability are essential. It uses high-frequency ultrasonic vibrations to produce strong, clean, and accurate welds on thermoplastic materials such as PP, ABS, HDPE, PVC, and other engineering plastics.

Its compact, lightweight, and ergonomic handheld design ensures excellent maneuverability, making it ideal for working in tight spaces and on complex components. The process eliminates the need for adhesives and external heating, resulting in faster operation, reduced costs, and environmentally friendly performance while preserving the original surface quality of the materials.

How Ultrasonic Welding Works

Ultrasonic welding operates using high-frequency mechanical vibrations, typically at 20 kHz, to join thermoplastic materials. Electrical energy is converted into mechanical vibrations through a transducer and transmitted to the material via a welding horn.

When pressure is applied, these vibrations generate localized frictional heat at the contact surface. This heat softens the plastic and enables it to fuse at a molecular level. After the vibration stops, the material cools under pressure, forming a strong, durable, and permanent bond with minimal distortion and excellent finish quality.

Key Features of Ultrasonic Hand Gun

1500 Watt Power Output

The machine delivers a powerful 1500 Watt output, making it suitable for welding medium to thick thermoplastics while ensuring strong and long-lasting joints for demanding applications.

Stable 20 kHz Frequency

A consistent operating frequency of 20 kHz ensures uniform vibration, which results in reliable and repeatable weld quality across different production cycles.

Adhesive-Free Operation

The process eliminates the need for adhesives, fasteners, or external heating, simplifying operations and ensuring clean, contamination-free welds.

Leak-Proof Welding Capability

It produces completely sealed and leak-proof joints, making it highly suitable for water tanks, containers, and liquid-handling applications.

Ergonomic Handheld Design

The lightweight and compact structure allows easy handling, precise control, and reduced operator fatigue during extended use or detailed work.

Fast Welding Cycle

Short welding cycles improve productivity by reducing processing time and increasing overall efficiency in manufacturing and repair tasks.

Durable Construction & Low Maintenance

The machine is built with high-quality components to ensure long service life and requires minimal maintenance, reducing downtime and operational costs.

Technical Specifications of Ultrasonic Hand Gun

Material Compatibility

Polypropylene (PP)

Polypropylene is a lightweight and chemically resistant material commonly used in automotive components and containers, offering excellent weldability with ultrasonic technology.

ABS (Acrylonitrile Butadiene Styrene)

ABS is a strong and impact-resistant material widely used in molded parts and structural applications, providing reliable and durable weld joints.

High-Density Polyethylene (HDPE)

HDPE offers excellent moisture resistance and is ideal for tanks and storage containers, making it highly suitable for leak-proof ultrasonic welding applications.

PVC & Engineering Plastics

These materials are commonly used in industrial fabrication and precision assemblies, responding effectively to ultrasonic vibrations for strong and consistent bonding.

Applications of Ultrasonic Hand Gun

Plastic Component Welding

Used for precise and reliable joining of thermoplastic parts in manufacturing, ensuring consistent quality and strong weld performance.

Water Tank and Container Repair

Effectively seals cracks and leakage points in plastic tanks and containers, restoring durability and functionality.

Industrial Plastic Fabrication

Supports assembly of plastic components in industrial environments with uniform weld strength and improved product quality.

Packaging and Container Sealing

Provides secure and durable sealing for plastic packaging, preventing leakage and maintaining product integrity.

On-Site Maintenance and Repair

Portable design allows easy use in field conditions, enabling quick and efficient repair of damaged plastic components.

Advantages of Ultrasonic Hand Gun

High-Strength Welds

Produces durable joints capable of withstanding mechanical stress and environmental conditions, ensuring long-term reliability.

Leak-Proof Performance

Creates completely sealed joints that are ideal for liquid storage and handling applications, reducing the risk of leakage.

Cost-Effective Operation

Eliminates the need for adhesives and fasteners, reducing material costs and simplifying the overall process.

Fast Production Speed

Short welding cycles increase productivity and allow faster completion of tasks in both manufacturing and repair operations.

Environmentally Friendly Process

No fumes, chemical waste, or harmful emissions are generated, making it a clean and sustainable solution.

Versatile Usage

Suitable for multiple industries including automotive, packaging, plastic manufacturing, and maintenance applications.

Frequently Asked Questions (FAQs)

What frequency does this ultrasonic welding gun operate at?

The machine operates at a stable 20 kHz frequency, ensuring consistent vibration output and reliable welding performance.

Which materials can be welded using this machine?

It supports a wide range of thermoplastics including PP, ABS, HDPE, PVC, and other engineering plastics.

Is it suitable for industrial use?

Yes, it is designed for both industrial production and on-site repair applications, offering flexibility and dependable performance.

Does it require adhesives or external heating?

No, the process is completely adhesive-free and does not require any external heating, making it efficient and clean.

Is it easy to operate?

Yes, the ergonomic handheld design ensures simple operation, precise control, and comfortable usage even for extended periods.
